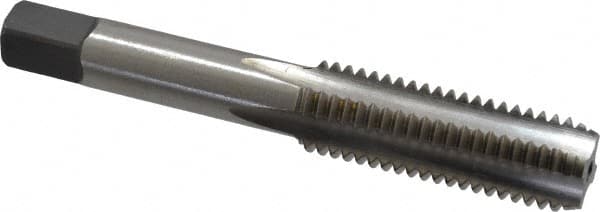

Kennametal - M14x2.00 Metric Coarse 6H 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 3.59" OAL, 1.656" Thread Length, D7 Limit, Oversize
Item #: 88413612
Brand: Kennametal
Model #: 4131843
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M14x2.00 |
| Class of Fit | 6H |
| Thread Limit | D7 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 3.59000 |
| Oversize | No |
| Thread Length (Decimal Inch) | 1.6560 |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Material Application | Cast Iron; Non-Ferrous Metals |
