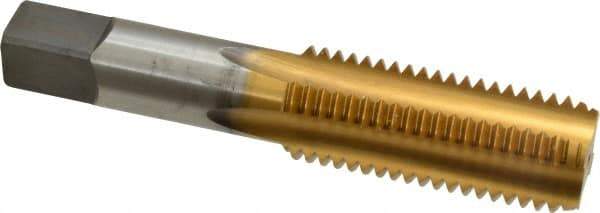

Kennametal - 1-8 UNC 3B 4 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 5-1/8" OAL, 2-1/2" Thread Length, H4 Limit, Oversize
Item #: 88104617
Brand: Kennametal
Model #: 4130684
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1-8 |
| Class of Fit | 3B |
| Thread Limit | H4 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 5.13000 |
| Overall Length (Inch) | 5-1/8 |
| Oversize | No |
| Thread Length (Decimal Inch) | 2.5000 |
| Thread Length (Inch) | 2-1/2 |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Material Application | Cast Iron; Stainless Steel; Steel |
