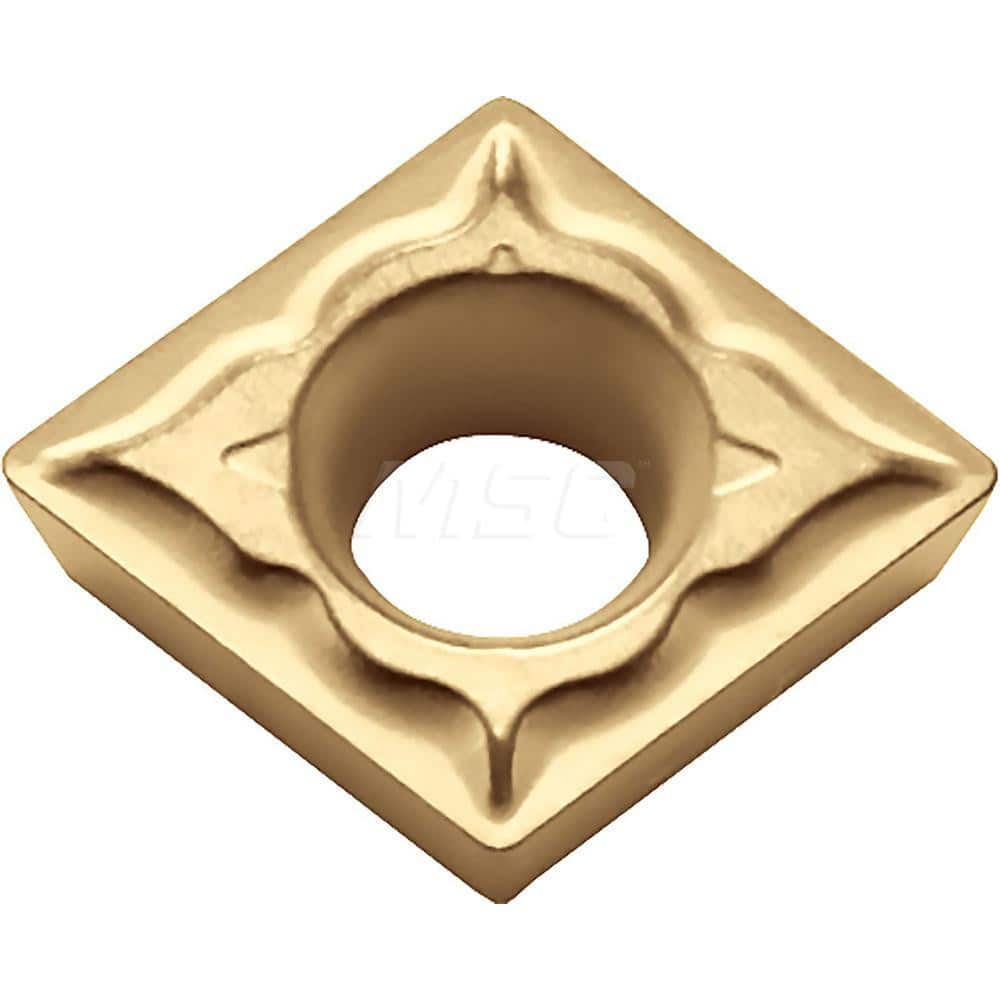

Kyocera CPMT 321XQ CA5515 Grade CVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel
Item #: 87465191
Brand: Kyocera
Model #: TJQ01480
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 321 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5515 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | CPMT090304XQ |
| Manufacturers Catalog Number | CPMT321XQCA5515 |
| Chip Breaker | XQ |
| Style | CPMT |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | Internal Facing; Boring |
