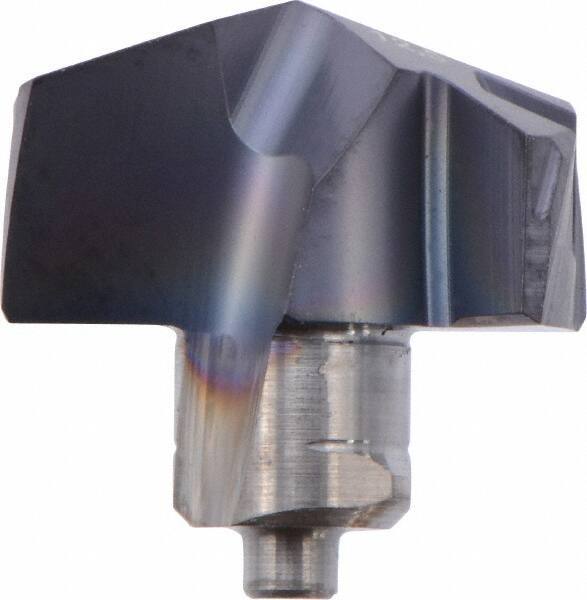

Iscar - Series ICP-2M, 12.5mm Diam Grade IC908 140° Replaceable Drill Tip - Carbide, TiAlN Finish, 12 Seat Size
Item #: 87308854
Brand: Iscar
Model #: 5508784
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.50 |
| Diameter (Decimal Inch) | 0.4920 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Series | ICP-2M |
| Coating | TiAlN |
| Insert Seat Size | 12 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 7.01 |
| Height (Decimal Inch) | 0.2760 |
