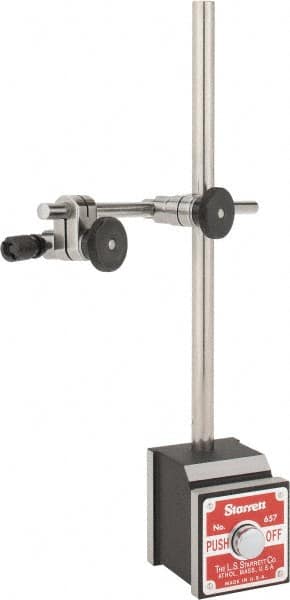

Starrett - 150 Lb Magnetic Force, Indicator Positioner & Holder with Base - Post & Rod, Rectangular Base, 1-15/16" Base Height, 1-5/8" Base Length, 1-7/8" Base Width
Item #: 86422177
Brand: Starrett
Model #: 52743
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Includes Base | Yes |
| Fine Adjustment | No |
| Magnetic Pull | 150 Lbs |
| Base Height (mm) | 49.21 |
| Base Height (Inch) | 1 |
| Base Height (Decimal Inch) | 1.9375 |
| Base Length (mm) | 41.28 |
| Base Length (Inch) | 1-5/8 |
| Base Width/Diameter (mm) | 47.63 |
| Base Width/Diameter (Inch) | 1-7/8 |
| Base Shape | Rectangular |
| Post Height (mm) | 188.91 |
| Post Height (Inch) | 7-7/16 |
| Arm Length (mm) | 152.40 |
| Arm Length (Inch) | 6 |
| Post Diameter (mm) | 9.53 |
| Post Diameter (Inch) | 3/8 |
| Arm Diameter (mm) | 6.35 |
| Arm Diameter (Inch) | 1/4 |
| Arm Style | Post & Rod |
| Includes | 7-7/16" Upright Base Post 657G; Indicator Attachment 657Y; Magnetic Base 657P; Rod 657X; Snug 657S w/ (2) 1/4" (6.3 mm) Holes; Snug PT18724 Complete w/ 1/4" & 3/8" Holes |
