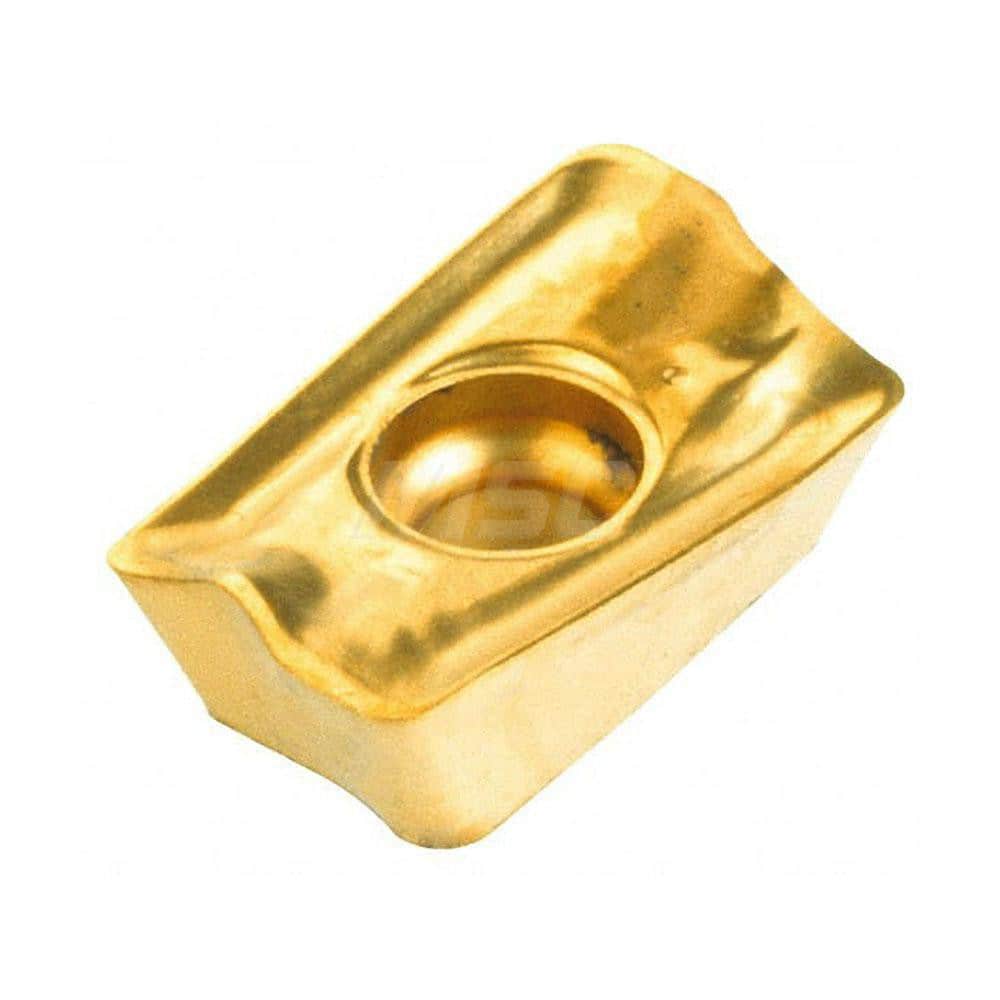

HM90APKT100325PDR 928 Carbide Milling Insert TiAlN Finish, 0.389″ Long x 0.139″ Thick x 0.2661″ Wide
Item #: 84641034
Brand: Iscar
Model #: 5603494
Product Specifications
| Insert Style | HM90 APKT |
| Insert Size Code | 100325 |
| Insert Size | 100325 |
| Insert Material | Solid Carbide |
| Material Grade | C5; C6; C1; C2 |
| Manufacturer Grade | IC928 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | HELI2000 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | HM90 APKT 100325PDR |
| Standards | ISO 13399 |
| Chip Breaker | PDR |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2661 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1390 |
| Length (Decimal Inch - 4 Decimals) | 0.3890 |
