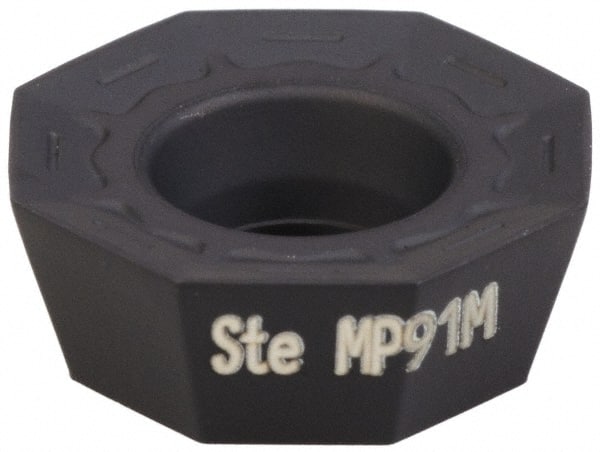

ODMT0404APEN 41 MP91M Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.157″ Long x 0.187″ Thick
Item #: 82813593
Brand: Kennametal
Model #: 5667433
Product Specifications
| Insert Style | ODMT |
| Insert Size | 0404 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C4; C6; C7; C8; C2 |
| Manufacturer Grade | MP91M |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Coating Process | CVD |
| Chip Breaker | 41 |
| Shape | Octagon |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 135 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Length (Decimal Inch - 4 Decimals) | 0.1570 |
