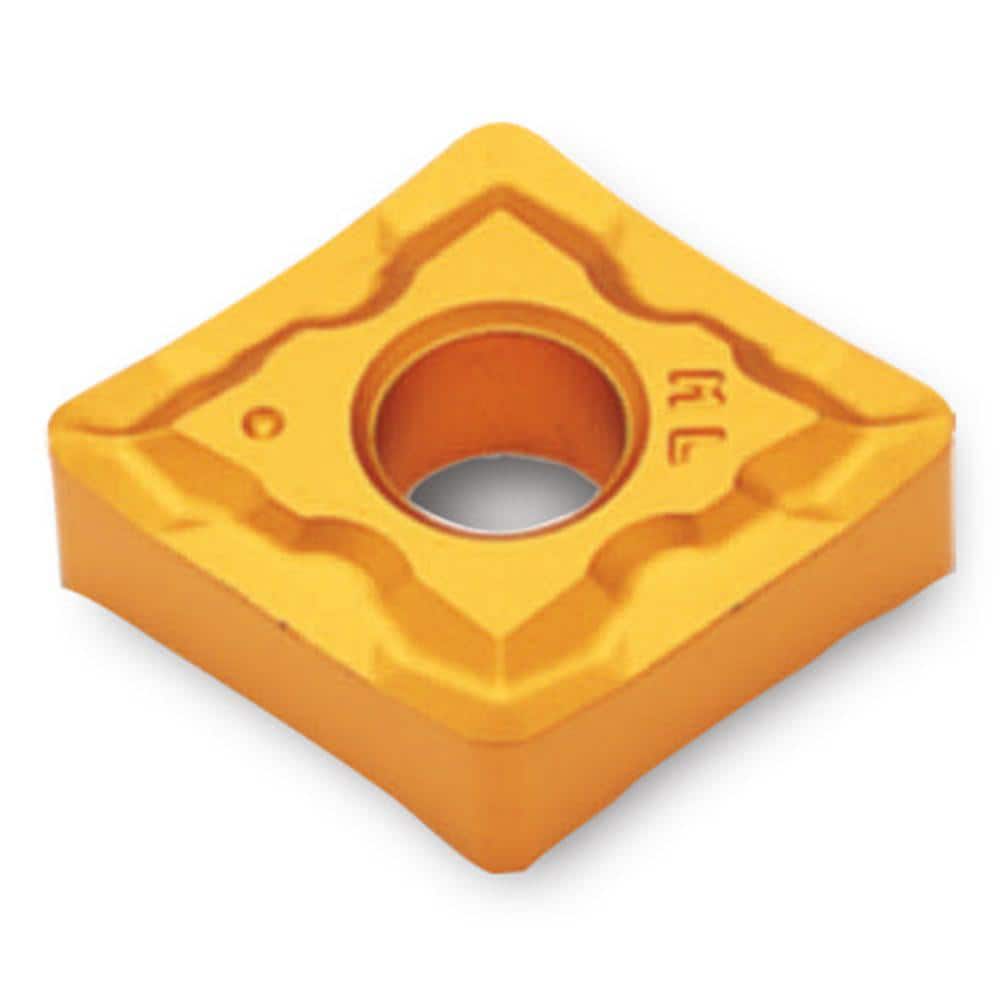

Turning Insert: CNMG432ML TT9080, Solid Carbide AlTiN & TiN Finish, Neutral, 0.5080″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 82177387
Brand: Ingersoll Cutting Tools
Model #: 5580419
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9080 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5080 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | CNMG432MLTT9080 |
| Iso Code | CNMG120408ML TT9080 |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | AlTiN; TiN |
