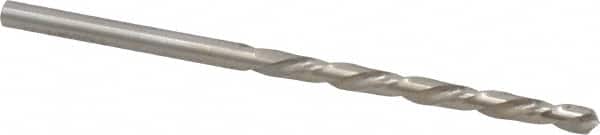

Chicago-Latrobe - #28 118° High Speed Steel Jobber Drill - Bright Finish, Left Hand Cut, Spiral Flute, Straight Shank, 2-7/8" OAL, Standard Point
Item #: 81128282
Brand: Chicago-Latrobe
Model #: 44498
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #28 |
| Drill Bit Size (Decimal Inch) | 0.1405 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Left Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1-3/4 |
| Overall Length (Inch) | 2-7/8 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.1405 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0007 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 150L |
