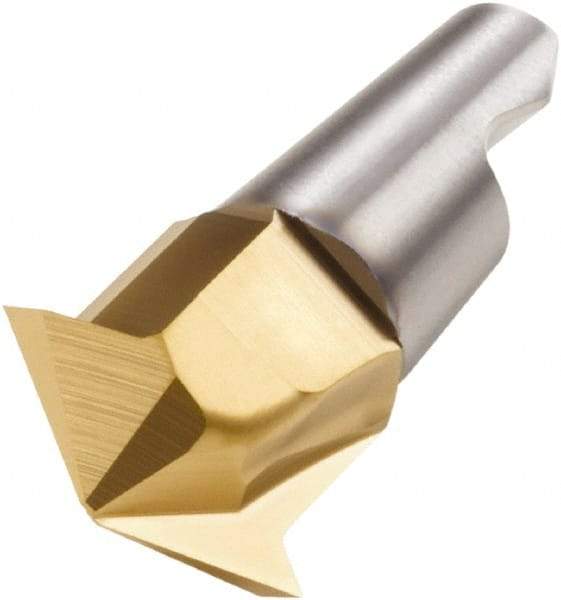

Seco - MM12 M02 Grade F15M Carbide Chamfer Milling Tip Insert - 2 Flutes, 0.63" Cutting Diam, 0.169" Depth of Cut, 0.598" Extension
Item #: 81115255
Brand: Seco
Model #: 23794
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM12 |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Manufacturer's Grade | F15M |
| Depth of Cut (Decimal Inch) | 0.1690 |
| Number of Flutes | 2 |
| Milling Tip Full Description | Double Chamfer |
| Coating Process | PVD |
| Chipbreaker | M02 |
| Extension From Holder (Decimal Inch) | 0.5980 |
| Lead Angle | 30 |
