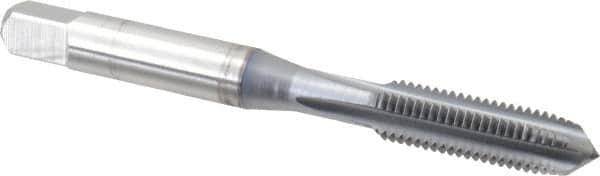

OSG - 1/4-28 UNF 3B 4 Flute TiCN Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 2-1/2" OAL, 1" Thread Length, H3 Limit, Oversize
Item #: 79431789
Brand: OSG
Model #: 1120408
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1/4-28 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Inch) | 2-1/2 |
| Oversize | No |
| Thread Length (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Aluminum; Carbon Steel; Cast Iron |
