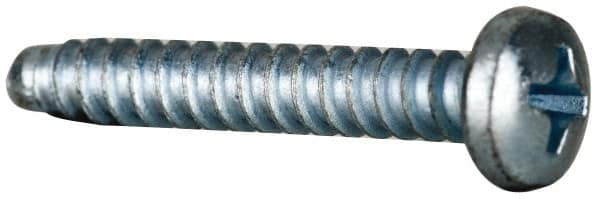

Value Collection - #8 Pan Head Phillips Sheet Metal Screw - Steel, 1" Length Under Head, AISI 1016, ASME B18.6.3, ASME B18.6.4 & SAE J933, Grade 1016-1024
Item #: 78365566
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Pan head types have cylindrical heads with rounded edges and flat bearing surfaces. Their low head height and large diameter provide increased driving power.
Phillips drive types have a cross-shaped slot and are used with Phillips drivers.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Type B screws have large, flat points and a fine thread pitch. They are used to cut threads in heavier sheet metal. They can also be used in blind holes.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Pan |
| Screw Size | #8 |
| Length (Inch) | 1 |
| Drive Type | Phillips |
| Material | Steel |
| Material Grade | 1016-1024 |
| Point Type | Type B |
| Length Measurement Type | Length Under Head |
| Phillips Drive Size | #2 |
| Finish/Coating | Zinc-Plated |
| Fastener Standard | AISI 1016; ASME B18.6.3; ASME B18.6.4; SAE J933 |
