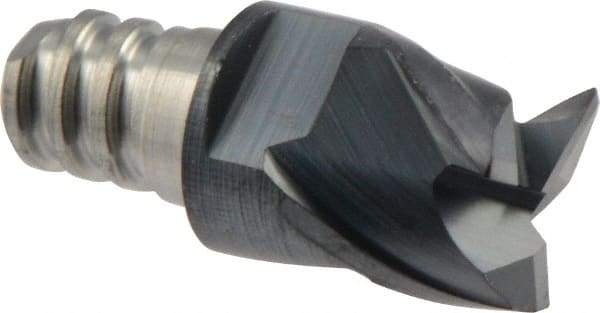

Iscar - MM ECU Grade IC908 Carbide Keyway Milling Tip Insert - TiAlN Finish, 3 Flutes, 7.7mm Cutting Diam, 4mm Depth of Cut, 10mm Extension, 0.008" Cnr Rad, 38° Helix
Item #: 76830934
Brand: Iscar
Model #: 5621359
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM ECU |
| Milling Tip Type | Keyway |
| Material | Carbide |
| Cutting Diameter (mm) | 7.70 |
| Cutting Diameter (Decimal Inch) | 0.3030 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 4.00 |
| Depth of Cut (Decimal Inch) | 0.1575 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Milling Tip Full Description | Keyway |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Extension From Holder (mm) | 10.00 |
| Extension From Holder (Decimal Inch) | 0.3937 |
| Thread Size | T05 |
| Helix Angle | 38 |
| Manufacturers Catalog Number | MM ECU077E04R020-3T05 |
