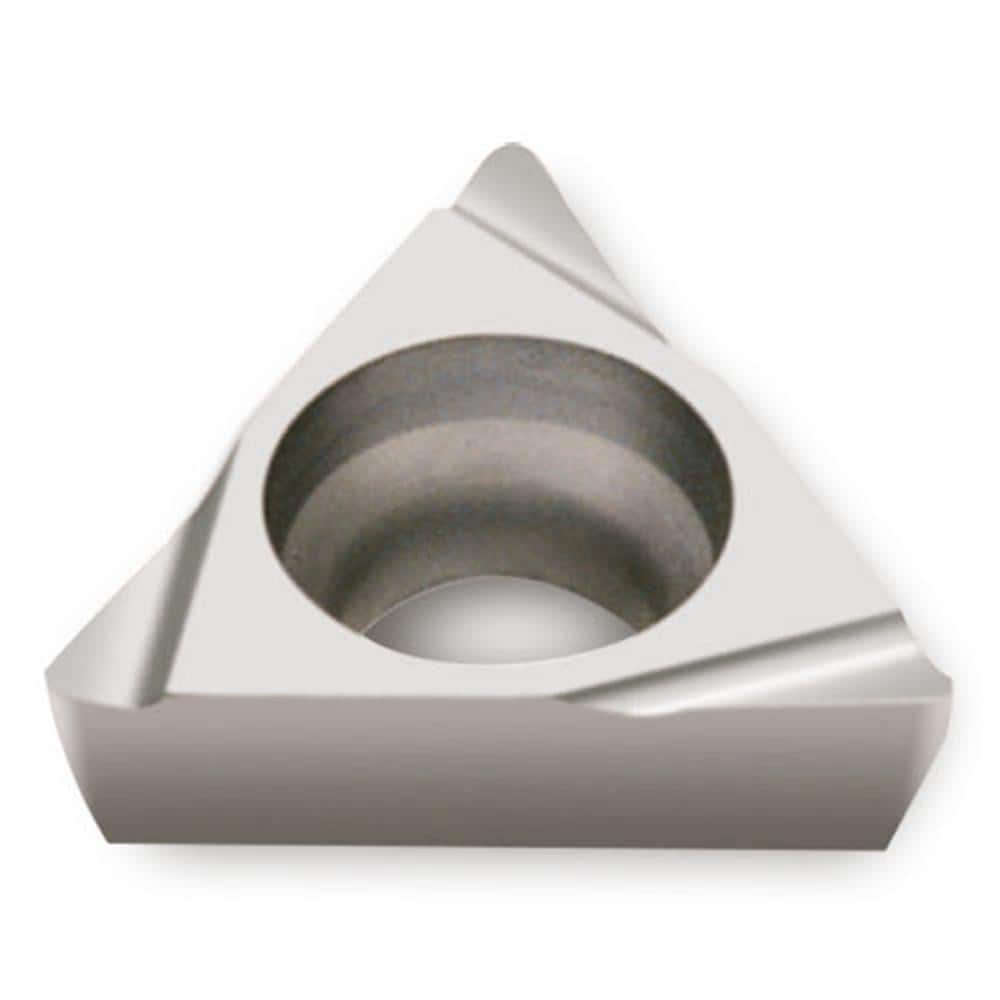

TPGX090204L CT3000 Cermet Turning Insert 60° Triangle
Item #: 76673458
Brand: Ingersoll Cutting Tools
Model #: 5740122
Product Specifications
| Insert Style | TPGX |
| Insert Shape Code | T |
| Insert Size Code | 731 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Cermet |
| Manufacturer Grade | CT3000 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGX |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3790 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | TPGX731LCT3000 |
| Iso Code | TPGX090204L CT3000 |
| Standards | ISO |
| Chip Breaker | L |
| Coating/Finish | Uncoated |
