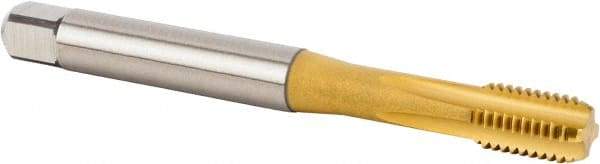

Kennametal - M10x1.50 Metric Coarse 6HX 4 Flute TiCN/TiN Finish Powdered Metal Straight Flute Machine Tap - Bottoming, Right Hand Thread, 100.1mm OAL, 15.1mm Thread Length, Oversize
Item #: 76268218
Brand: Kennametal
Model #: 4156544
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 3.94090 |
| Overall Length (mm) | 100.10 |
| Oversize | No |
| Series/List | T642 |
| Thread Length (Decimal Inch) | 0.5945 |
| Thread Length (mm) | 15.10 |
| Neck Length (Inch) | 15/16 |
| Tapping Depth (mm) | 39 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Square Size (Decimal Inch) | 0.3150 |
| Square Size (mm) | 8.00 |
| Material Application | Cast Iron; Non-Ferrous Materials |
