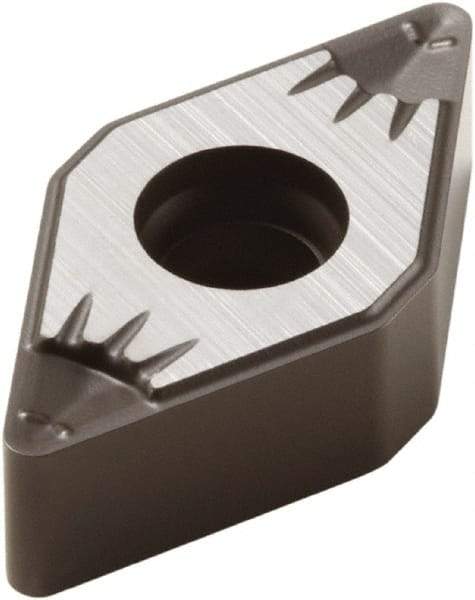

Seco - DNMU331 MF5 TP2500 Grade Carbide Turning Insert - TiCN/Al2O3 Coated, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0° Relief Angle, 1/64" Cnr Rad
Item #: 76069004
Brand: Seco
Model #: 29570
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMU |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TP2500 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF5 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
