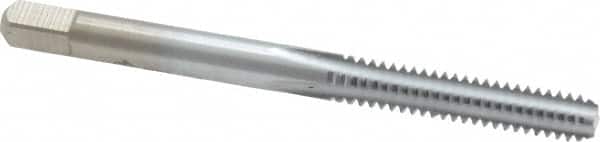

Made in USA - #10-24 UNC 4 Flute Chrome Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2-3/8" OAL, 7/8" Thread Length, H2 Limit, Oversize
Item #: 74328253
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #10-24 |
| Thread Limit | H2 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Chrome |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-3/8 |
| Oversize | No |
| Thread Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (Inch) | 1/4 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Ferrous Metals; Non-Ferrous Metals; Non-Metallic Materials |
