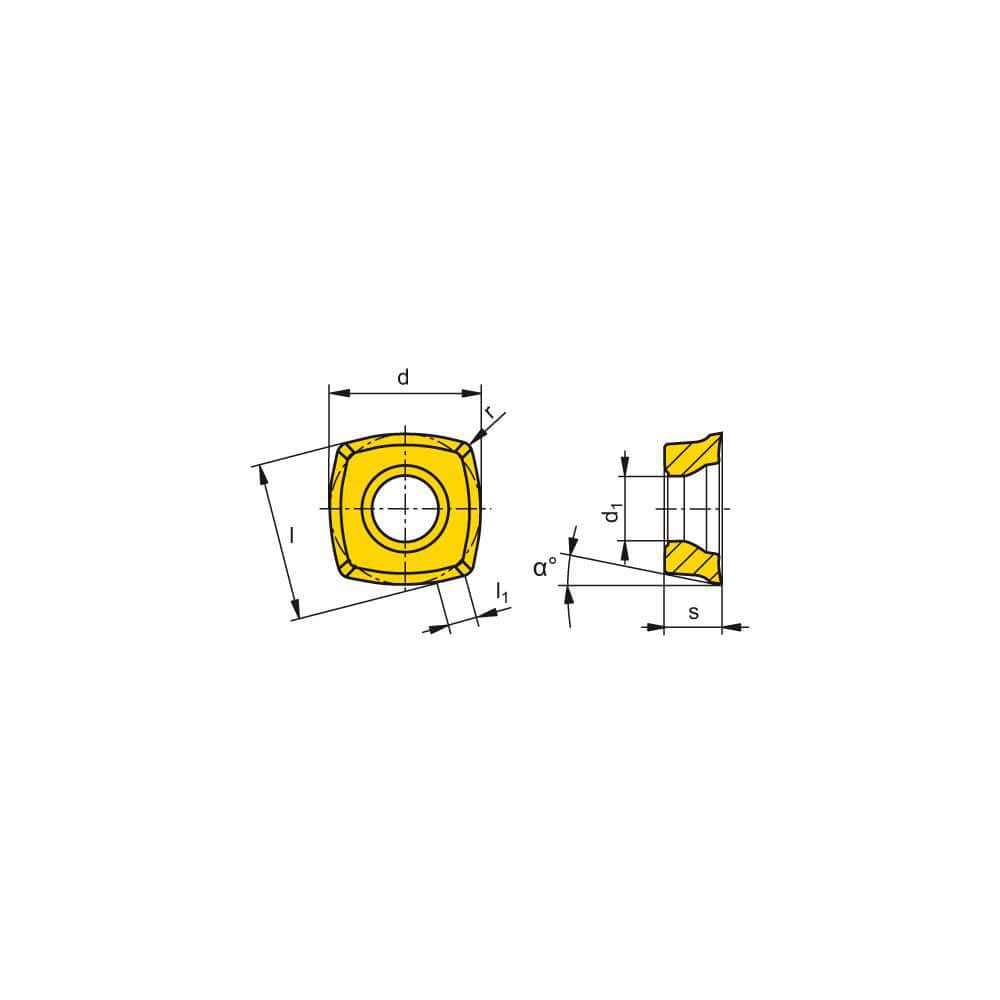

Milling Insert: XOLX 120410SR-M50 CTCM235, CTCM235, Solid Carbide N/A Finish,
Item #: 74246182
Brand: Ceratizit
Model #: 51017310
Product Specifications
| Insert Style | XOLX |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCM235 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Neutral |
| Relief Angle | 10.00 |
| Series | XOLX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | XOLX 120410SR-M50 CTCM235 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
