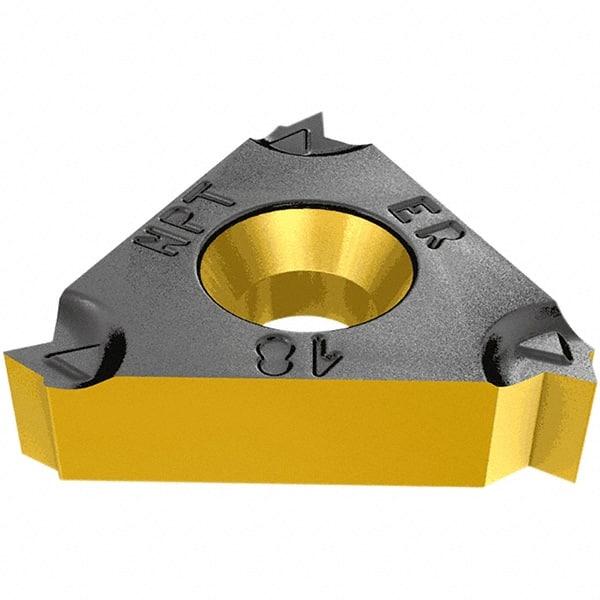

16ERM8NPT IC808 Carbide Laydown Threading Insert TiN/TiAlN Finish, RH External NPT Thread, 8 TPI, 9.53mm Inscribed Circle, 0.143″ Thick
Item #: 72821556
Brand: Iscar
Model #: 5903398
Product Specifications
| Insert Style | 16ERM |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Material Grade | Submicron |
| Thread Type | External |
| Thread Standard | NPT |
| Insert Hand | Right Hand |
| Chipbreaker | B |
| Series | ISCARTHREAD |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (mm) | 0.13 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Teeth Per Inch | 8.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | Coated |
