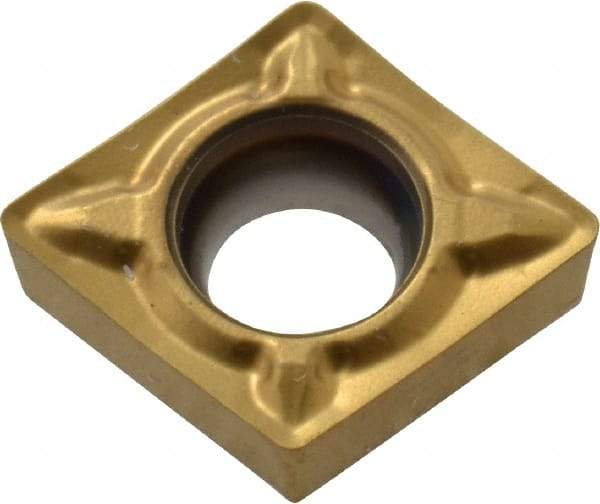

Seco - CCMT21.51 F1 Grade TS2000 Carbide Turning Insert - TiAlN/TiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 72493000
Brand: Seco
Model #: 38941
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TS2000 |
| Coating | TiAlN/TiN |
| Material Grade | C6 |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
