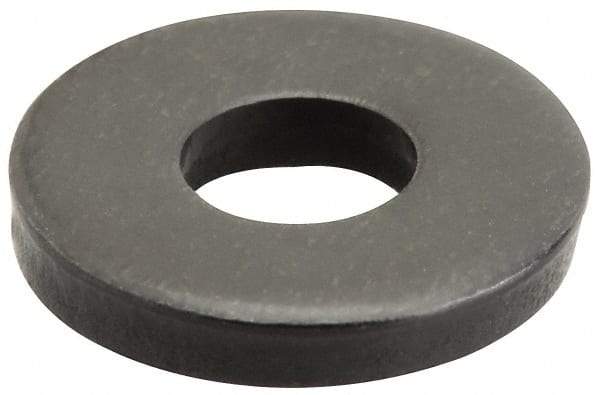

Gibraltar - 1-1/4" Screw, Grade 18-8 Stainless Steel Standard Flat Washer - 1-9/32" ID x 2-1/2" OD, 9/32" Thick, Plain Finish
Item #: 71925788
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 1-1/4 |
| Inside Diameter (Inch) | 1-9/32 |
| Inside Diameter (Decimal Inch) | 1.2813 |
| Outside Diameter (Inch) | 2-1/2 |
| Outside Diameter (Decimal Inch) | 2.5000 |
| Thickness (Decimal Inch) | 0.2813 |
| Thickness (Inch) | 9/32 |
| Material Grade | 18-8 |
| Material | Stainless Steel |
| Finish/Coating | Plain |
| Inside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Hardness | Rockwell C36-C42 |
