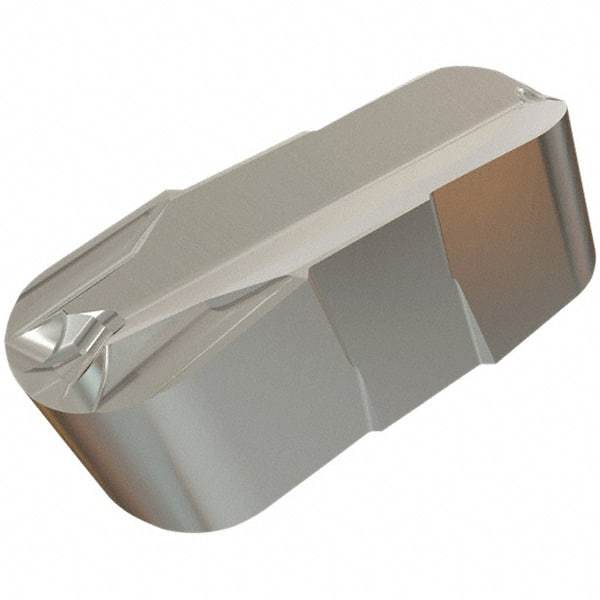

Iscar - 478239GIF Grade IC8250, 4.78mm Cutting Width Carbide Grooving Insert - 11.4mm Max Depth of Cut, Neutral, 2.39mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 71476469
Brand: Iscar
Model #: 6405264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 478239 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Maximum Depth of Cut (mm) | 11.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.4488 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0941 |
| Coating Process | CVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 4.78 |
| Overall Width (Decimal Inch) | 0.1882 |
