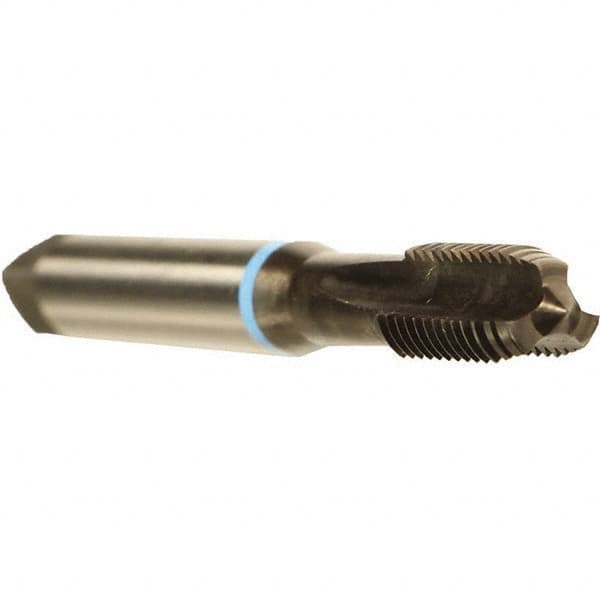

Emuge - 1/4-20 UNC 2BX 3 Flute Nitride Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 2-1/2" OAL, 0.669" Thread Length, Oversize
Item #: 71340491
Brand: Emuge
Model #: AU100501.5009
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Nitride is a thin, hard-shell coating that supports the surface hardness of the tool. It is used where abrasive or wearing conditions exist.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 2BX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.6690 |
| Neck Length (Decimal Inch) | 1.1420 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Length (Decimal Inch) | 1.36 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Cast Iron; Copper Alloys; Duroplastics; Graphite; Steel |
