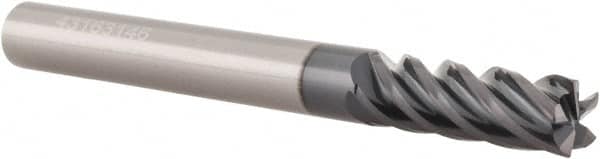

Accupro - 3/4" Diam 5 Flute Solid Carbide 0.03" Corner Radius End Mill
Item #: 70217401
Brand: Accupro
Model #: 546NL7500030C11
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 6 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Helix | Yes |
| Reach Length (Inch) | 3-3/8 |
| Reach Length (Decimal Inch) | 3.3750 |
| Neck Diameter (Decimal Inch) | 0.6750 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Long |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | +0.0001/-0. 0004 |
| Extended Reach | Yes |
