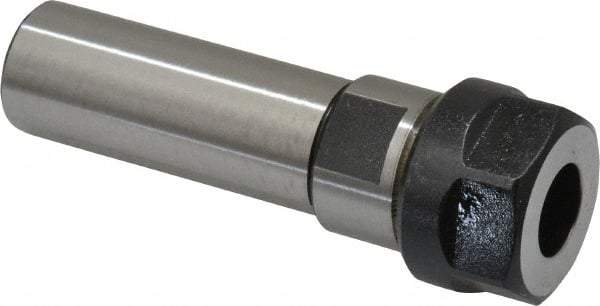

Scully Jones - 0.0394" to 13/32" Capacity, 1.3819" Projection, Straight Shank, ER16 Collet Chuck - 85.1mm OAL, 3/4" Shank Diam
Item #: 70186168
Brand: Scully Jones
Model #: 05228
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 1.3819 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Maximum Collet Capacity (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 85.10 |
| Actuator Type | Wrench |
| Shank Length (mm) | 50.00 |
| Hex Diameter (mm) | 32.00 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0008 |
| Coolant Type | Through-Spindle |
