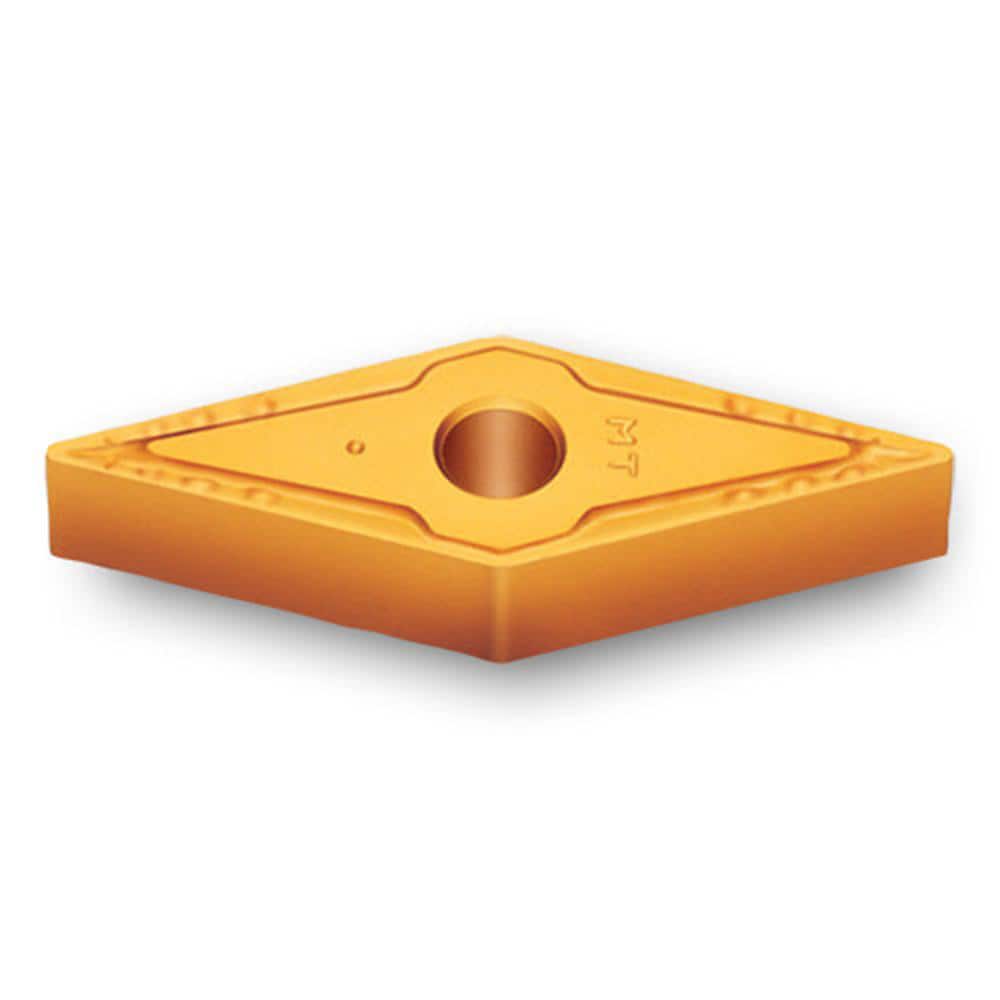

Turning Insert: VNMG2.531MT TT5100, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.5460″ Long, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VNMG
Item #: 70062203
Brand: Ingersoll Cutting Tools
Model #: 5515304
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 2.531 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5460 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | VNMG2.531MTTT5100 |
| Iso Code | VNMG130404MT TT5100 |
| Chip Breaker | MT |
| Width (Decimal Inch - 4 Decimals) | 0.3130 |
| Coating/Finish | TiCN; TiN; Al2O3 |
