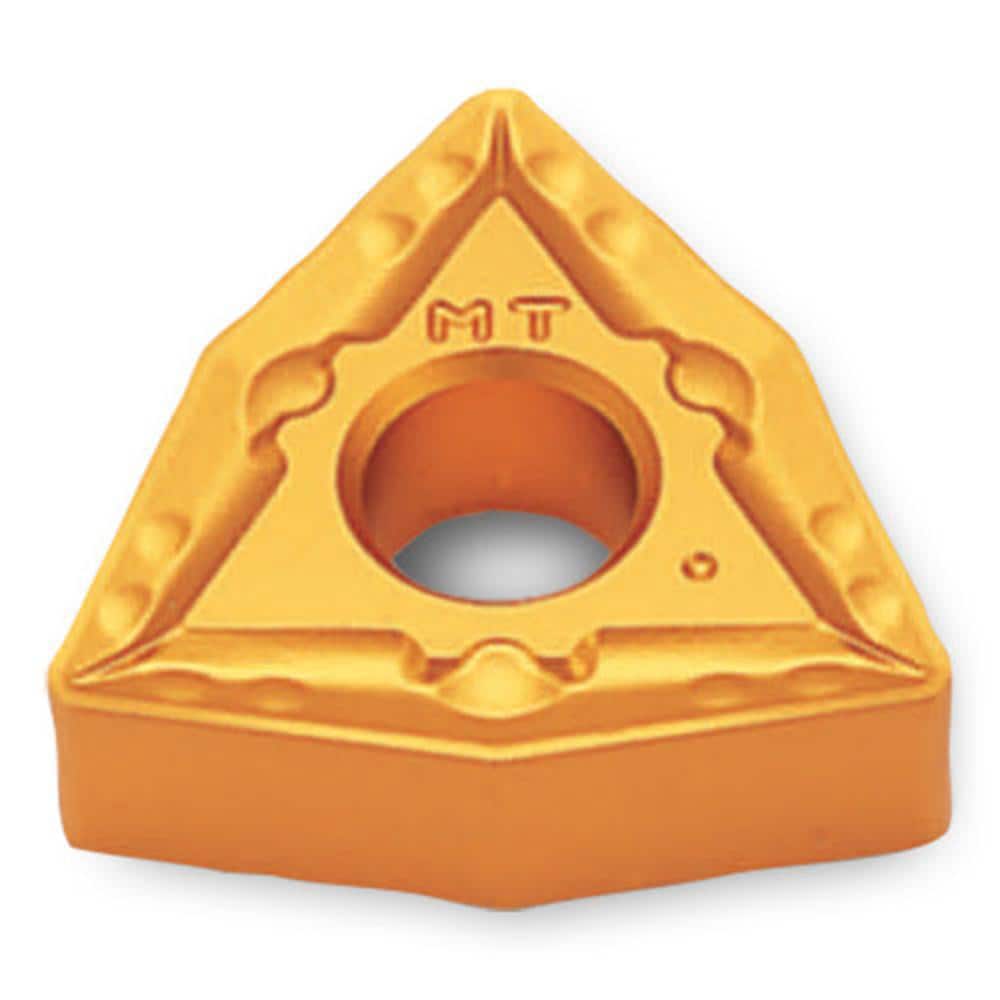

WNMG431MT TT5100 Carbide Turning Insert 0.488″ Long, 1/2″ Inscribed Circle, 1/64″ Corner Radius, 80° Trigon
Item #: 70061775
Brand: Ingersoll Cutting Tools
Model #: 5515089
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 431 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | WNMG431MTTT5100 |
| Iso Code | WNMG080404MT TT5100 |
| Standards | ISO |
| Chip Breaker | MT |
| Coating/Finish | TiCN; TiN; Al2O3 |
