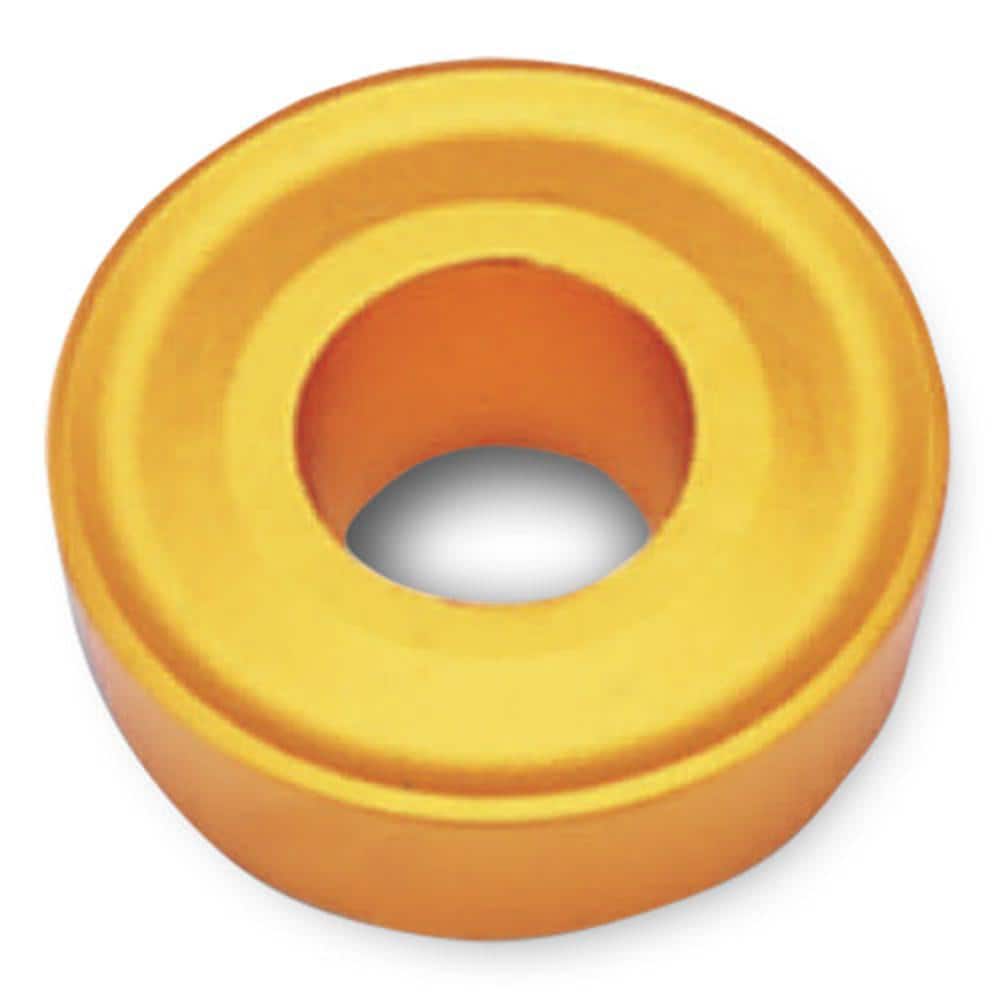

Turning Insert: RCMX120400 TT5100, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.4720″ Long, 0.2360″ Corner Radius, N/A Round, Series RCMX
Item #: 70060850
Brand: Ingersoll Cutting Tools
Model #: 5514813
Product Specifications
| Insert Style | RCMX |
| Insert Shape Code | R |
| Insert Size Code | 120400 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Relief Angle | 7 |
| Series | RCMX |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4720 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | RCMX120400TT5100 |
| Iso Code | RCMX120400 TT5100 |
| Chip Breaker | Common |
| Width (Decimal Inch - 4 Decimals) | 0.4720 |
| Coating/Finish | TiCN; TiN; Al2O3 |
