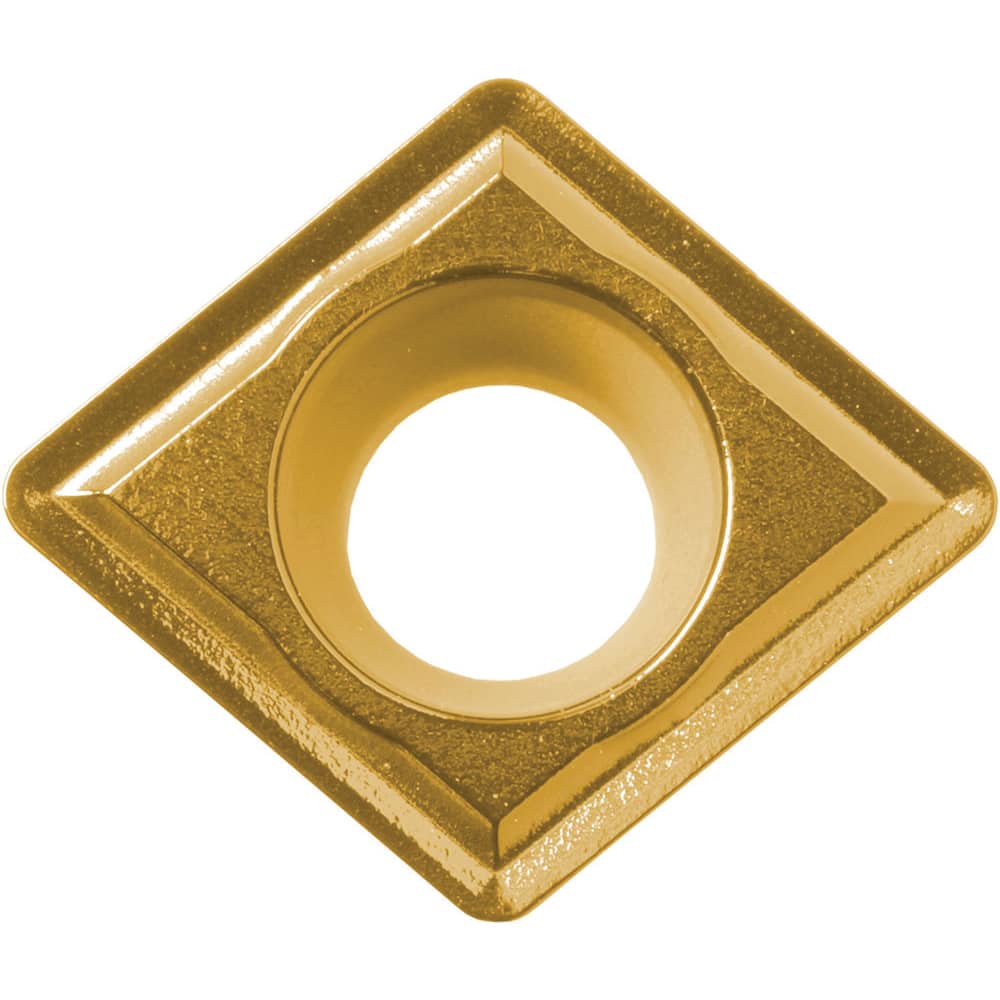

CCMT09T308 CA6525 Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 5/32″ Thick, 80° Diamond, Series CA65
Item #: 69762714
Brand: Kyocera
Model #: TJV00500
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 3252 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | CA6525 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CA65 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | S |
| Manufacturers Catalog Number | CCMT3252CA6525 |
| Chip Breaker | T |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; TiN |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
