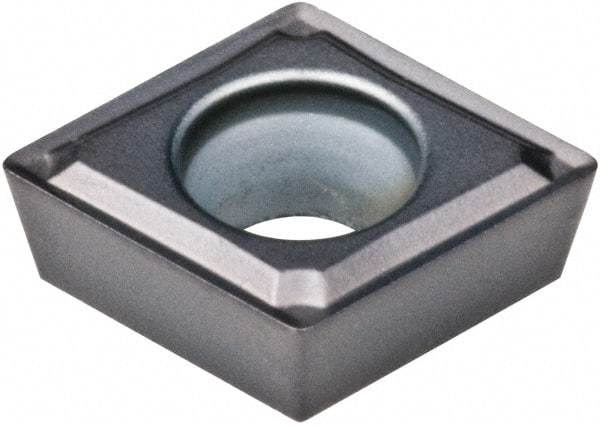

Kennametal - CPMT32.52 FW Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 69258903
Brand: Kennametal
Model #: 4045232
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | FW |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CPMT09T308FW |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPMT3252FW |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P; K; N |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
