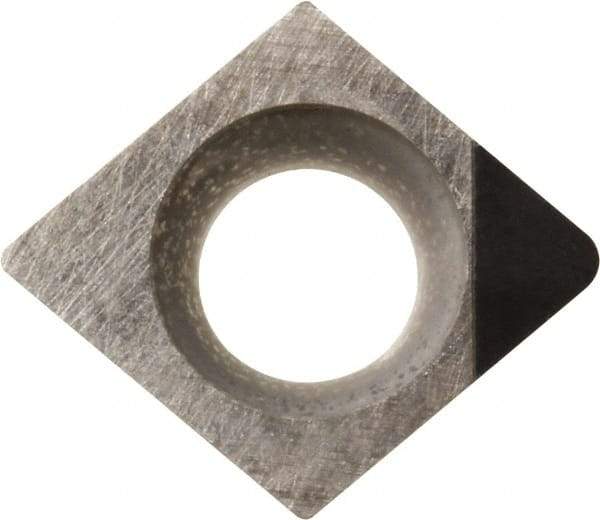

Kyocera - CCGW141105 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 4.2926mm Inscr Circle, 1.8034mm Thick, 0.2032mm Corner Radius
Item #: 68929025
Brand: Kyocera
Model #: 8830939
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 141105 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 4.29 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Thickness (Decimal Inch) | 0.0710 |
| Thickness (mm) | 1.80 |
| Corner Radius (mm) | 0.2032 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | CCGW040102NE |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGW141105NE KPD001 |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
