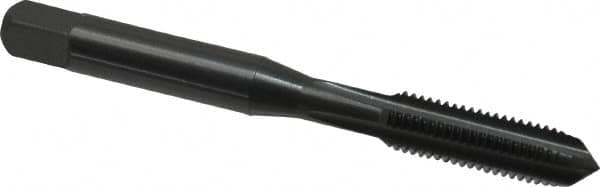

OSG - #0-80 UNF 3B 2 Flute Oxide Finish High Speed Steel Straight Flute Standard Hand Tap - Taper, Right Hand Thread, 1-5/8" OAL, 5/16" Thread Length, H1 Limit, Oversize
Item #: 68558626
Brand: OSG
Model #: 1000001
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #0-80 |
| Class of Fit | 3B |
| Thread Limit | H1 |
| Number of Flutes | 2 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Inch) | 1-5/8 |
| Oversize | No |
| Series/List | 102 |
| Thread Length (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Aluminum; Cast Aluminum; Cast Iron; High Carbon Steel; Low Carbon Steel; Medium Carbon Steel |
