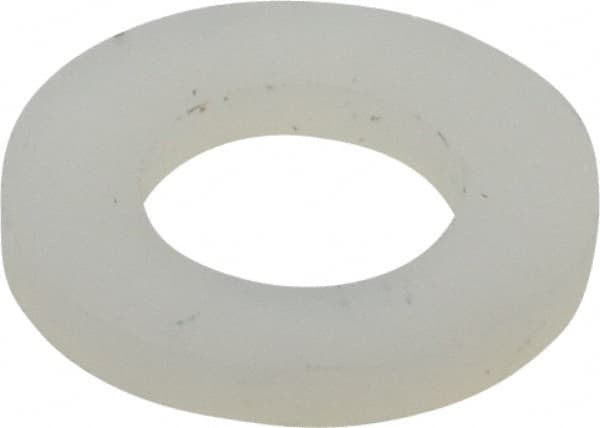

Made in USA - 1/4" Screw, Grade 6/6 Nylon Standard Flat Washer - 6.4mm ID x 11.99mm OD, 1.5mm Thick
Item #: 67353607
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 1/4 |
| Inside Diameter (Decimal Inch) | 0.2520 |
| Inside Diameter (mm) | 6.40 |
| Outside Diameter (Decimal Inch) | 0.4720 |
| Outside Diameter (mm) | 11.99 |
| Thickness (Decimal Inch) | 0.0590 |
| Thickness (mm) | 1.50 |
| Material Grade | 6/6 |
| Material | Nylon |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
