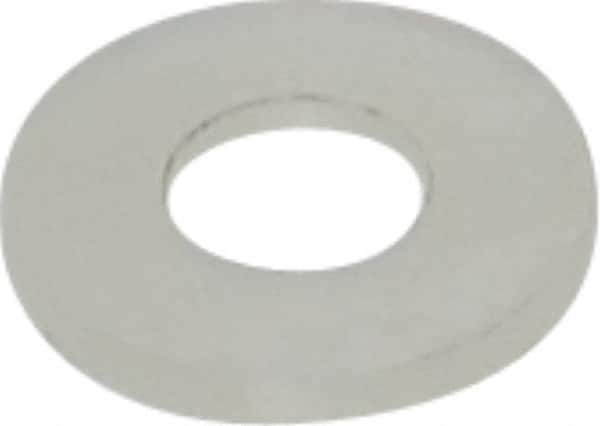

Made in USA - #10 Screw, Grade 6/6 Nylon Standard Flat Washer - 5.08mm ID x 11.43mm OD, 1.22mm Thick
Item #: 67353524
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | #10 |
| Inside Diameter (Decimal Inch) | 0.2000 |
| Inside Diameter (mm) | 5.08 |
| Outside Diameter (Decimal Inch) | 0.4500 |
| Outside Diameter (mm) | 11.43 |
| Thickness (Decimal Inch) | 0.0480 |
| Thickness (mm) | 1.22 |
| Material Grade | 6/6 |
| Material | Nylon |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
