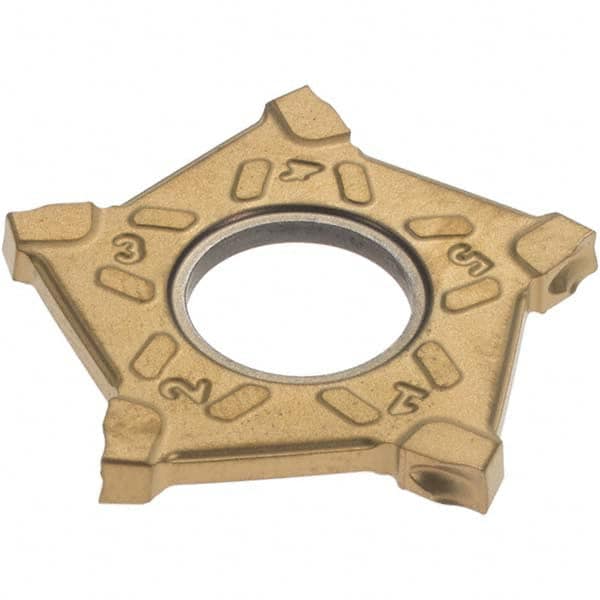

Iscar - PENTAD22R200 Grade IC808, 2mm Cutting Width Carbide Cutoff Insert - Right Hand Lead Angle, 0.2mm Corner Radius, TiAlN Finish
Item #: 66902172
Brand: Iscar
Model #: 6004734
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | D22R200 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Series | PentaIQGrip |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | PENTA D22R200J-6D |
