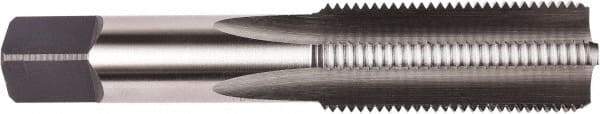

Union Butterfield - M3x0.50 Metric Coarse 6H 3 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 1-15/16" OAL, 5/8" Thread Length, D3 Limit, Oversize
Item #: 66384348
Brand: Union Butterfield
Model #: 1012434
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M3x0.50 |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 1.93750 |
| Overall Length (Inch) | 1-15/16 |
| Oversize | No |
| Material Grade | M2 |
| Series/List | 1700M |
| Thread Length (Decimal Inch) | 0.6250 |
| Thread Length (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloys |
