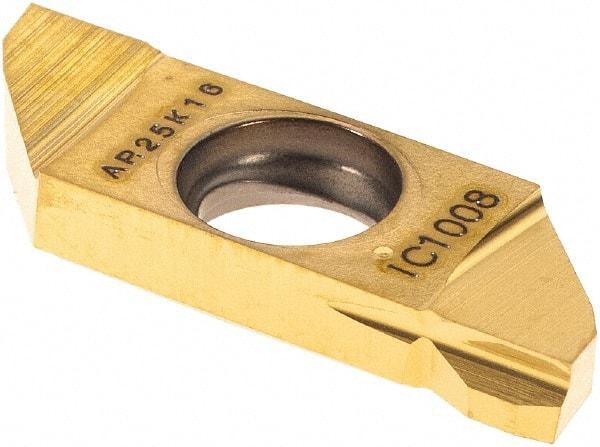

Iscar - 22SCIR Grade IC1008, Carbide Grooving Insert - 3.8mm Max Depth of Cut, TiAlN/TiN Finish
Item #: 66291048
Brand: Iscar
Model #: 6405420
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCIR |
| Insert Size | 22 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Series | Swisscut |
| Manufacturers Catalog Number | SCIR 22-AR00-25K16 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
