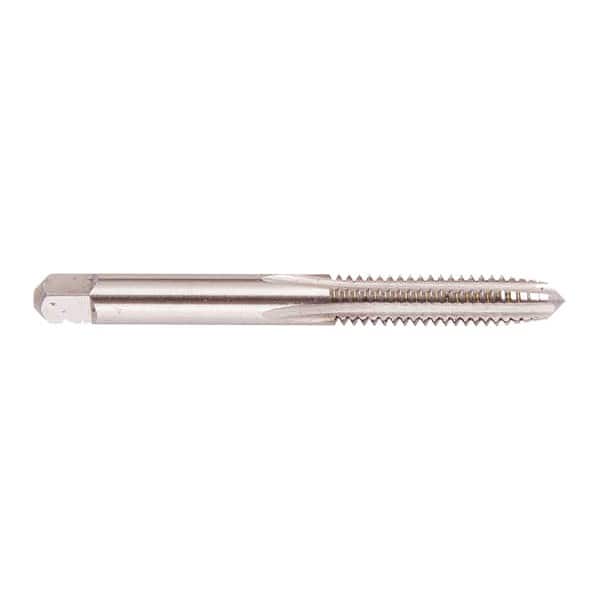

Regal Cutting Tools - M39x3.00 Metric Fine 6H 6 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Taper, Right Hand Thread, 6-11/16" OAL, 3-3/16" Thread Length, D8 Limit, Oversize
Item #: 66115676
Brand: Regal Cutting Tools
Model #: 027841AS
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M39x3.00 |
| Class of Fit | 6H |
| Thread Limit | D8 |
| Number of Flutes | 6 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (Decimal Inch) | 6.68750 |
| Overall Length (Inch) | 6-11/16 |
| Oversize | No |
| Thread Length (Decimal Inch) | 3.1875 |
| Thread Length (Inch) | 3-3/16 |
| Shank Diameter (Decimal Inch) | 1.3050 |
| Square Length (Inch) | 1-1/8 |
| Square Size (Decimal Inch) | 0.9790 |
