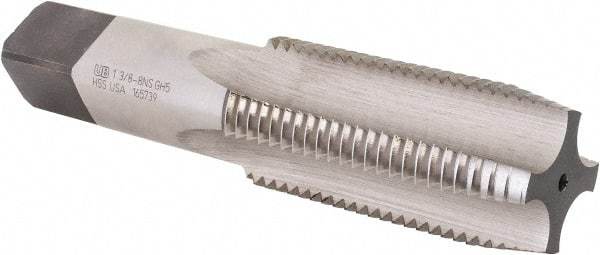

Union Butterfield - 1-3/8 - 8 UNC/UNS 2B 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 6-1/16" OAL, 3" Thread Length, H5 Limit, Oversize
Item #: 65697781
Brand: Union Butterfield
Model #: 1013317
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1-3/8 - 8 |
| Class of Fit | 2B |
| Thread Limit | H5 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC/UNS |
| Overall Length (Decimal Inch) | 6.06250 |
| Overall Length (Inch) | 6-1/16 |
| Oversize | No |
| Material Grade | M2 |
| Series/List | 1505 |
| Thread Length (Decimal Inch) | 3.0000 |
| Thread Length (Inch) | 3 |
| Shank Diameter (Decimal Inch) | 1.1080 |
| Square Length (Inch) | 1-1/16 |
| Square Size (Decimal Inch) | 0.8310 |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloys |
