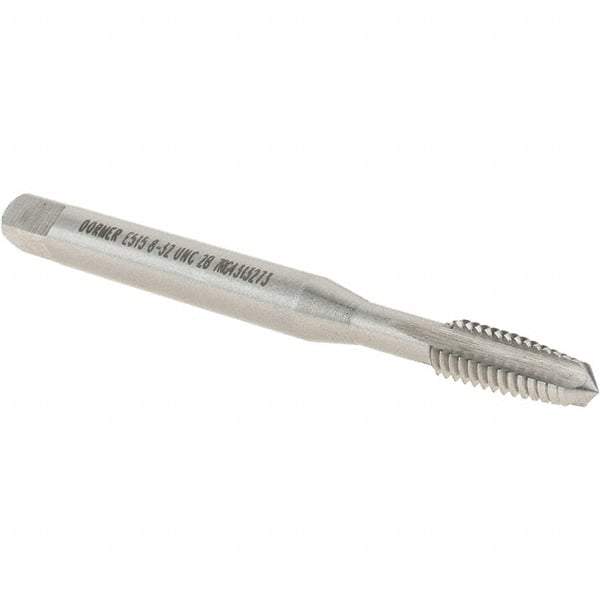

DORMER - #8-32 UNC 2B 3 Flute Bright Finish High Speed Steel Straight Flute Machine Tap - Taper, Right Hand Thread, 53mm OAL, 9.5mm Thread Length, Oversize
Item #: 65684524
Brand: DORMER
Model #: 0154113
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | #8-32 |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.08820 |
| Overall Length (mm) | 53.00 |
| Oversize | No |
| Material Grade | M2 |
| Series/List | E515 |
| Thread Length (Decimal Inch) | 0.3743 |
| Thread Length (mm) | 9.50 |
| Tapping Depth (mm) | 17 |
| Shank Diameter (Decimal Inch) | 0.1773 |
| Shank Diameter (mm) | 4.50 |
| Square Size (Decimal Inch) | 0.1399 |
| Square Size (mm) | 3.55 |
| Material Application | Alloy Steel; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastics |
