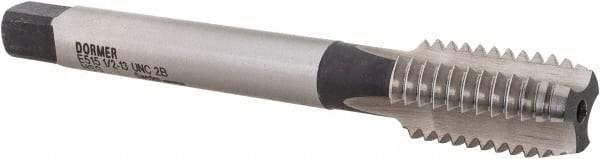

DORMER - 1/2-13 UNC 2B 3 Flute Bright Finish High Speed Steel Straight Flute Machine Tap - Bottoming, Right Hand Thread, 89mm OAL, 22mm Thread Length, Oversize
Item #: 65681603
Brand: DORMER
Model #: 0096970
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1/2-13 |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 3.50660 |
| Overall Length (mm) | 89.00 |
| Oversize | No |
| Material Grade | M2 |
| Series/List | E515 |
| Thread Length (Decimal Inch) | 0.8668 |
| Thread Length (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.3546 |
| Shank Diameter (mm) | 9.00 |
| Square Size (Decimal Inch) | 0.2797 |
| Square Size (mm) | 7.10 |
| Material Application | Alloy Steel; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastics |
