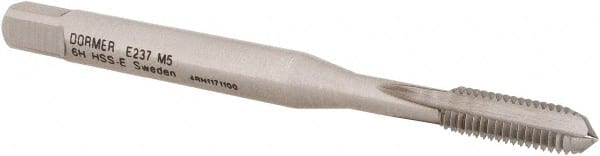

DORMER - M5x0.80 Bottoming LH 6H Bright Cobalt 3-Flute Straight Flute Machine Tap
Item #: 65651754
Brand: DORMER
Model #: 0086544
Product Specifications
| Tap Type | Machine Tap |
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.75800 |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Series/List | E237 |
| Thread Length (Decimal Inch) | 0.5122 |
| Thread Length (mm) | 13.00 |
| Tapping Depth (mm) | 25 |
| Shank Diameter (Decimal Inch) | 0.2364 |
| Shank Diameter (mm) | 6.00 |
| Square Size (Decimal Inch) | 0.1931 |
| Square Size (mm) | 4.90 |
| Material Application | Alloy Steel; Aluminum Alloys; Brass; Carbon Steel; Cast Iron; Copper Alloys; Hardened Steel; Steel; Structural Steel; Thermosetting Plastics |
