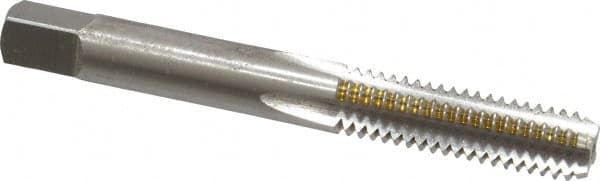

OSG - 5/16-18 UNC 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2-23/32" OAL, 1-1/8" Thread Length, H2 Limit, Oversize
Item #: 65231193
Brand: OSG
Model #: 1110800
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 5/16-18 |
| Thread Limit | H2 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-23/32 |
| Oversize | No |
| Series/List | 101/102 |
| Thread Length (Inch) | 1-1/8 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2380 |
| Material Application | Aluminum; Carbon Steel; Cast Iron |
