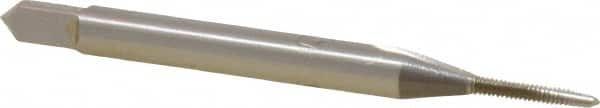

OSG - #0-80 UNF 3B 2 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Taper, Right Hand Thread, 1-5/8" OAL, 5/16" Thread Length, H1 Limit, Oversize
Item #: 65140824
Brand: OSG
Model #: 1000000
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #0-80 |
| Class of Fit | 3B |
| Thread Limit | H1 |
| Number of Flutes | 2 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Inch) | 1-5/8 |
| Oversize | No |
| Series/List | 101/102 |
| Thread Length (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Aluminum; Carbon Steel; Cast Iron |
