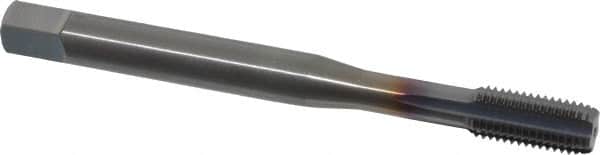

OSG - 5/16-24 UNF 2B 5 Flute TiCN Finish Solid Carbide Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 90mm OAL, 1-1/8" Thread Length, Oversize
Item #: 65057168
Brand: OSG
Model #: 3110908
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 5/16-24 |
| Class of Fit | 2B |
| Number of Flutes | 5 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Series/List | 311 |
| Thread Length (Inch) | 1-1/8 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2380 |
| Material Application | CoCr; Hardened Steel |
