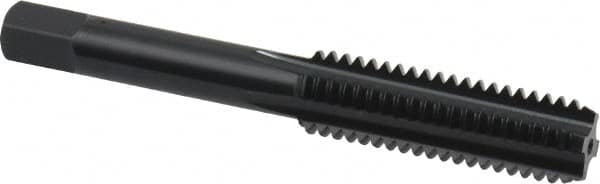

OSG - 7/16-14 UNC 4 Flute Nitride/Oxide Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 3-5/32" OAL, 1-7/16" Thread Length, H3 Limit, Oversize
Item #: 64156532
Brand: OSG
Model #: 1602007
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Nitride/Oxide is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 7/16-14 |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Nitride/Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 3-5/32 |
| Oversize | No |
| Series/List | 101C |
| Thread Length (Inch) | 1-7/16 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Size (Decimal Inch) | 0.2420 |
| Material Application | Aluminum; Cast Iron |
