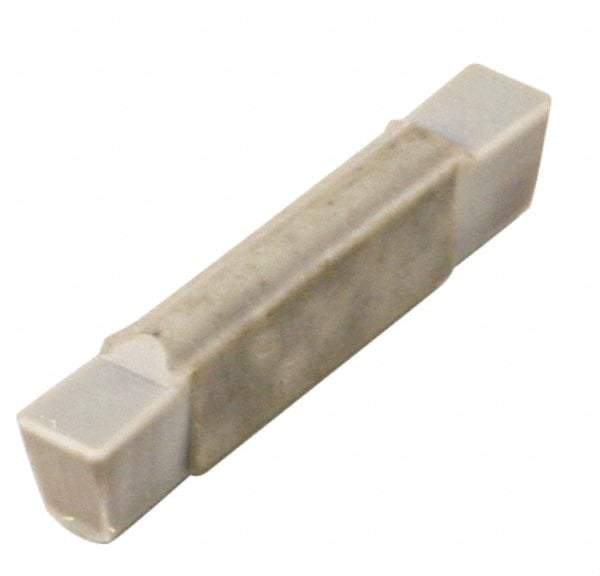

Kennametal - 0600M0G Grade KY3500, 6mm Cutting Width Ceramic-SI Grooving Insert - 4.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, Uncoated
Item #: 63706899
Brand: Kennametal
Model #: 2658422
Exact Tooling IR#: 04
Features and Benefits
Ceramic-SI is a silicon based material that reinforces the ceramic for better resistance to abrasion, shock and toughness. It is commonly used at high speeds on steel, cast and ductile iron and aerospace materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0600M0 |
| Material | Ceramic-SI |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Material Grade | C2 |
| Manufacturer's Grade | KY3500 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Insert Seat Size | 6 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | A4 |
