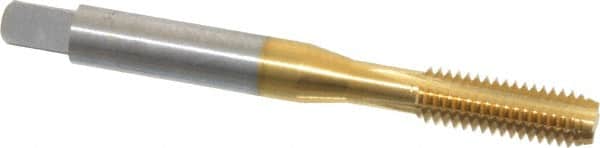

Balax - M6x1.00 Metric Coarse 6H 4 Flute TiN Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 2-1/2" OAL, 0.83" Thread Length, D5 Limit, Oversize
Item #: 62332499
Brand: Balax
Model #: 54605T
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Inch) | 2-1/2 |
| Oversize | No |
| Material Grade | M42 |
| Series/List | BX600 |
| Thread Length (Decimal Inch) | 0.8300 |
| Neck Length (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Length (Inch) | 5/16 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Aluminum; Cast Iron; Magnesium; Zinc |
