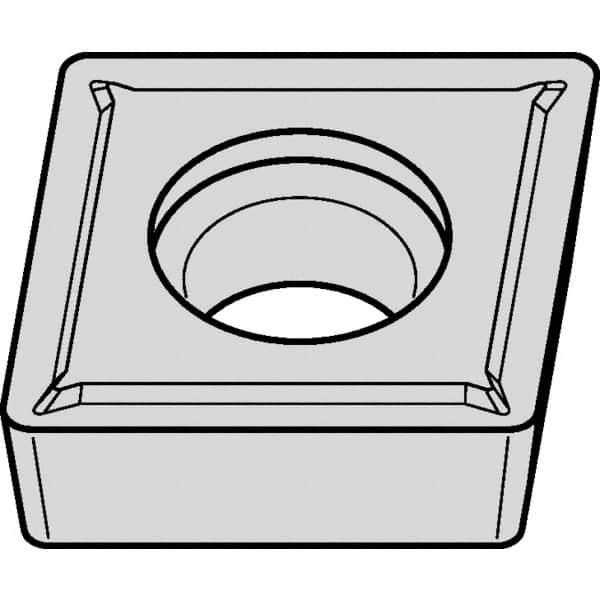

Kennametal - CCMT21.52 LF Grade KCK15B Carbide Turning Insert - TiOCN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 61286506
Brand: Kennametal
Model #: 5698743
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Length (mm) | 6.45 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCK15B |
| Coating | TiOCN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.2539 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | CCMT060208LF |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Diamond |
