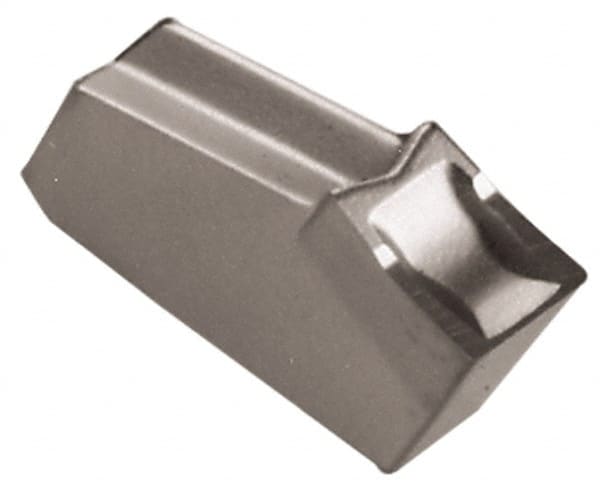

Iscar - GFL C IC20 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 15° Left Hand Lead Angle, 0.0079" Cnr Rad, Single End
Item #: 60793213
Brand: Iscar
Model #: 6000153
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFL |
| Lead Angle Direction | Left Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | C |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Manufacturers Catalog Number | GFL 3-15D |
